DIN3570 SS304 SS316 Stainless steel U Bolt

Product Description

Product Description

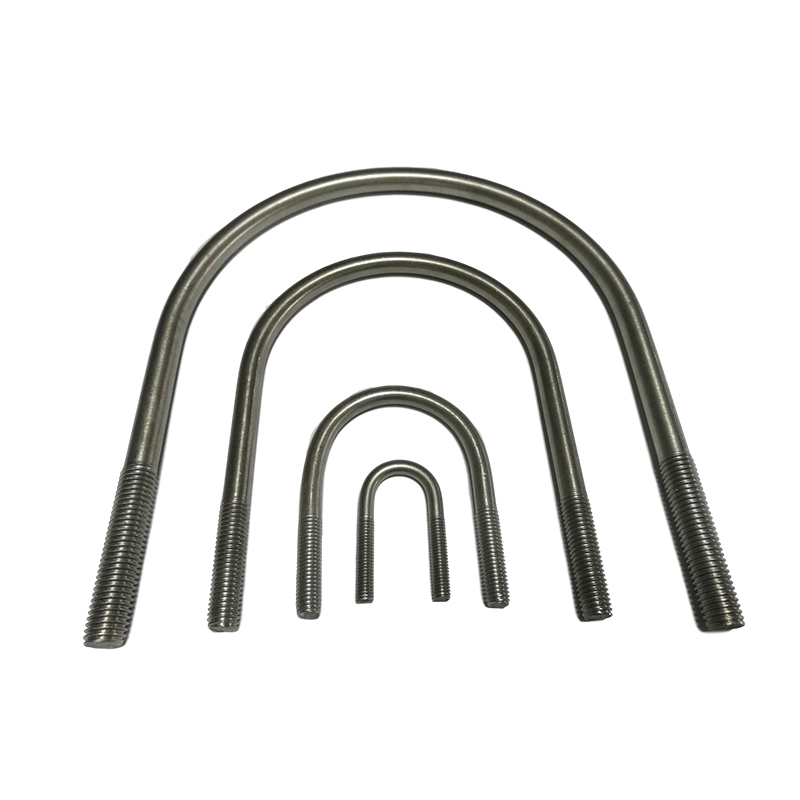

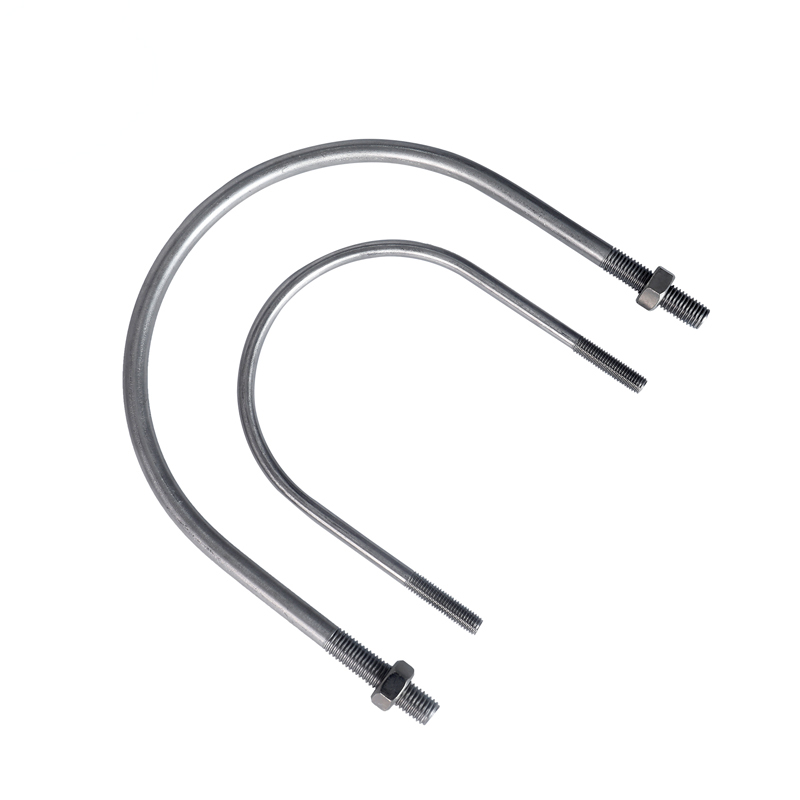

DIN3570 SS304 SS316 Stainless steel U bolt

U-bolt is a bolt in the shape of the letter U with Screw threads on both ends.U-Bolts have primarily been

used to support pipework, pipes which fluids and gasses pass through.As such, U-bolts were measured using

pipe work engineering speak. A U-bolt would be described by the size of pipe it was supporting.

For example, a 40 Nominal Bore U-bolt would be asked for by pipe work engineers, and only they would

know what that meant. In reality, the 40 nominal bore part bears little resemblance to the size and dimensions

of the u-bolt.

The nominal bore of a pipe is actually a measurement of the inside diameter of the pipe. Engineers are interested

in this because they design a pipe by the amount of fluid / gas it can transport.

As U-bolts are now being used by a much wider audience to clamp any kind of tubing / round bar then a more

convenient measurement system needs to be used.

Four elements uniquely define any u-bolt:

  1. Material Type (For example: Bright zinc plated mild steel)
  2. Thread dimensions (For example: M12 * 50 mm)
  3. Inside diameter (For example: 50 mm - the distance between the legs)
  4. Inside height (For example: 120 mm)

Products name
DIN3570 SS304 SS316 Stainless steel U Bolt
Standard:
Stainless Steel: SS201, SS303, SS304, SS316,SS316L,SS904L,F593DIN,ASTM/ANSI JIS EN ISO,AS,GB
Material
Stainless Steel: SS201, SS303, SS304, SS316,SS316L,SS904L
Steel Grade: DIN: Gr.4.6,4.8,5.6,5.8,8.8,10.9,12.9; SAE: Gr.2,5,8;
ASTM: 307A,307B,A325,A394,A490,A449,
Finishing
Zinc(Yellow,White,Blue,Black),Hot Dip Galvanized(HDG),Black Oxide,

Geomet,Dacroment,anodization,Nickel plated,Zinc-Nickel plated
Production
Process
Machining and CNC for Customized fastener
Customized Products
Lead time
Busy season:15-30days,Slack seaon:10-15days
Stock Products
Steel:4.8Grade DIN6923,8.8Grade 10.9Grade of GB5783 and GB5782

Stainless steel: All DIN Standard stainless steel Bolt
Free Samples for standard fastener
For more information visit:www.hainafastener.com
  • Professional Manufacturer: All of our Fastener are designed and manufactured according
  • to buyers’ specification and performance.
  • Quality is guaranteed: Durability testing and critical technical design to enhance fasteners
  • lifetime.
  • Cost effective: Competitive prices with professional factory supply Perfect fastening solution
  • with 10 years experiences to solve your problem: Wide range of parts selection.
  • Customized Ideal Fasteners: customized services according to the samples and drawings
  • offered.

1.How do you let me trust you.

We have own import & export right, and we are Gold mumber of alibaba and made in china, We get

credit guarantee from Alibaba Group. you can make an order by alibaba to us directly.

2.How about your price.

High quality products with reasonable price. Please give me a inquire, I will quoted you a price for you

refer at once.

3. How do you control your quality.

We request QC inspect every productions links for each bacth goods.And we can provide you MTC

and mill certificate when the goods is finished.

4.Could you provide free samples?

For new customer, We can provide free samples for standard fastener, But the clients will pay the

express charges. For old customer,We will send you free samples and pay express charges by ourself.

5.Do you accept small order?

Sure, we can accept any orders, we keep lots of stock for ALL STAINLESS STEEL FASTENER,

CARBON STEEL Nut AND PART BOLT,Like hex weld nut, cage nut, wing nut, square weld nut,

cap nut, hex nut,flange nut.Metric 8.8Grade,10.9Grade 12.9Grade Hex bolt and Hex Socket cap screw,

Part ASME Hex cap screw.

6.How about your delivery time

General speaking, if the goods is in stock, we can delivery them with 2-5days, If the quantity is 1-2container, we can give you with 18-25days,if the quantity is more than 2 container and you are very urgent, we can let factory priority

produce your goods.

7.What is your packing.

Our packing is 20-25kg for one carton,36 or 48pcs cartons for one pallet. One pallets is about 900-960kg, We also can make customer’s logo on the cartons. Or we customized cartons according to

customers’ requestment

8.What is your payment term

We can accept T/T,LC for general order ,Paypal and Western union for small order or samples

order.

Contact us if you need more details on U Bolt. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Stainless Steel U Bolt、Ss304 U Bolt. If these products fail to match your need, please contact us and we would like to provide relevant information.
